Product Description

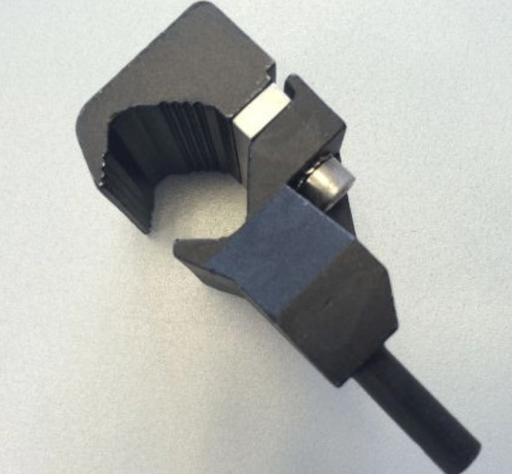

The Raymarine Adapter Pin Bracket Assembly is a mounting accessory designed to securely hold and position transducers, sensors, or other equipment for use with Raymarine systems. This durable and easy-to-install bracket is ideal for ensuring proper alignment and stability of connected devices, ensuring they operate efficiently and effectively. It's particularly useful for applications that require secure attachment to various mounts, and it's compatible with various Raymarine products.

Product Specifications
Product Type: Adapter Pin Bracket Assembly
Compatibility: Designed for use with Raymarine transducers, sensors, and other related devices
Part Number: D166
Material: Durable construction for secure mounting
Usage: Ensures secure attachment and proper positioning of transducers or sensors

Product Description
The Raymarine Airmar 220WX Weather Transducer is a highly reliable and accurate weather monitoring device designed for marine applications. It provides real-time weather data, including wind speed and direction, air temperature, humidity, and barometric pressure. The transducer is equipped with a 6-meter cable with DeviceNet connectivity, ensuring seamless integration with Raymarine systems for detailed weather tracking and analysis. Ideal for enhancing navigational and operational decisions, it is a valuable tool for both recreational and commercial vessels.

Product Specifications
Type: Weather Transducer
Weather Parameters Measured: Wind speed, wind direction, air temperature, humidity, and barometric pressure
Cable Length: 6 meters
Connectivity: DeviceNet for seamless integration with Raymarine systems
Part Number: A80454
Usage: Designed for marine applications to provide real-time weather data for navigation and operational efficiency

Product Description

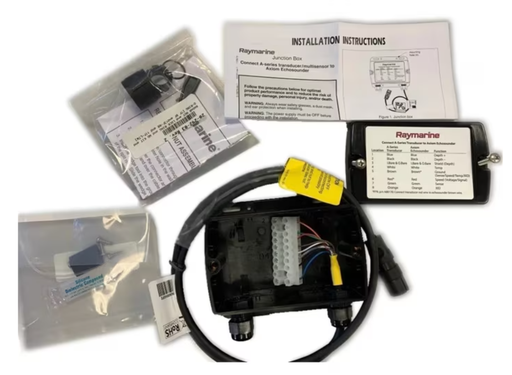

The Raymarine Airmar Embedded Transducer Junction Box is a durable and efficient solution designed for connecting and integrating multiple Airmar transducers with Raymarine systems. This junction box allows for easy management of transducer connections, facilitating the setup of various sonar or weather sensors on a single network. It simplifies the wiring process, ensuring secure and organized connections, and is an essential component for installations requiring multiple transducer inputs.

Product Specifications
Type: Embedded Transducer Junction Box
Compatibility: Airmar transducers with Raymarine systems
Part Number: A80644
Functionality: Manages and organizes transducer connections for seamless integration
Usage: Ideal for marine installations requiring multiple transducer connections, such as sonar or weather systems
Construction: Durable, marine-grade materials for long-lasting performance

Product Description

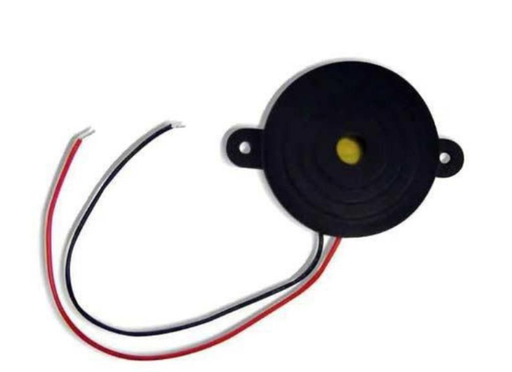

The Raymarine Alarm Booster is an essential accessory designed to enhance the volume and clarity of alarm sounds for Raymarine systems. It boosts the audio output, ensuring that critical alerts and notifications are easily heard, even in noisy environments such as a busy engine room or outdoor marine conditions. This is especially useful in situations where quick action is required based on alarm notifications, ensuring operators do not miss important warnings related to navigation, equipment, or safety.

Product Specifications
Type: Alarm Booster
Part Number: T139
Functionality: Increases the volume and clarity of alarm sounds for Raymarine systems
Compatibility: Compatible with Raymarine multifunction displays and other compatible equipment
Usage: Ideal for use in noisy environments where enhanced alarm notifications are necessary
Construction: Durable design suitable for marine conditions

Product Description

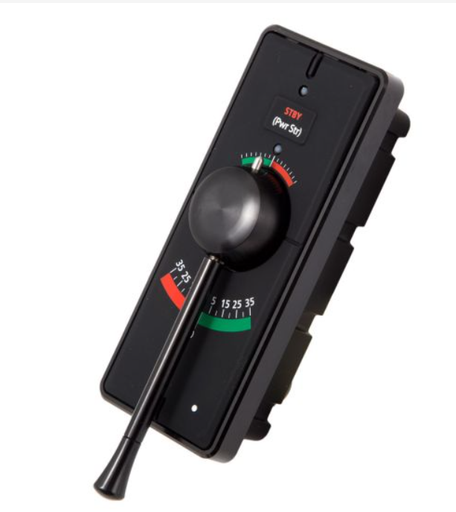

The Raymarine Autopilot Follow-On Teller Steer Control Head is an advanced control unit designed for Raymarine autopilot systems. This device allows for precise control of the vessel’s steering system, with easy switching between different modes: Standby and Power Steer. It is designed to seamlessly integrate with Raymarine's autopilot systems, providing the operator with a smooth and responsive steering experience. The control head ensures that the vessel can be manually steered or controlled by autopilot, offering flexibility and reliability for different navigation needs.

Product Specifications
Type: Autopilot Follow-On Teller Steer Control Head
Modes:
Standby
Power Steer
Standby (to manually override autopilot when needed)
Part Number: A80532
Compatibility: Designed for integration with Raymarine Autopilot systems
Functionality: Provides control over vessel steering with easy mode switching
Usage: Ideal for improving control and flexibility in autopilot systems for enhanced navigation and safety
Construction: Robust and marine-grade design for use in harsh marine environments

Product Description

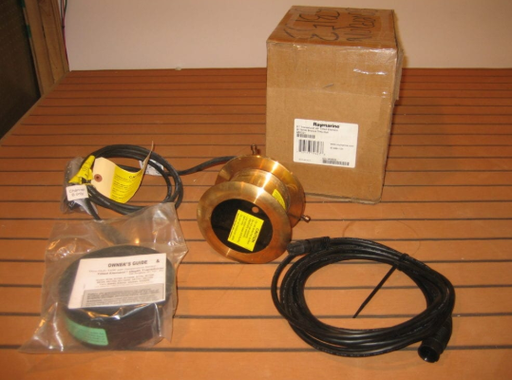

The Raymarine B175H-W 1000W D/T Through Hull Wide Beam Transducer 20° Angle (Part No: A80321) is an advanced through-hull transducer designed for vessels with a 20° deadrise angle. It features a wide beam for enhanced sonar coverage, ideal for medium to deep water fishing and navigation. With a power output of 1000W, the transducer delivers excellent depth and temperature readings. Its durable bronze construction and low-profile design minimize drag and ensure longevity in tough marine environments. This transducer is compatible with Raymarine sonar systems, providing clear, detailed imaging for superior navigation and fishing.

Product Specifications
Type: Through-Hull Transducer
Part Number: A80321
Power Output: 1000W
Frequency Range: 50/200 kHz
Beam Type: Wide Beam
Angle: 20° deadrise (for vessels with 20° hull angle)
Material: Bronze (low profile)
Functionality: Depth and temperature measurement with wide sonar coverage
Hull Impact: Low-profile design reduces drag while maintaining sonar performance
Compatibility: Compatible with Raymarine sonar systems, fishfinders, and multifunction displays
Installation: Through-hull installation for vessels with 20° deadrise angle
Additional Features: Provides clear sonar imaging for medium to deep waters
Recommended Use: Ideal for vessels with a 20° deadrise angle in medium to deep water depths

Product Description

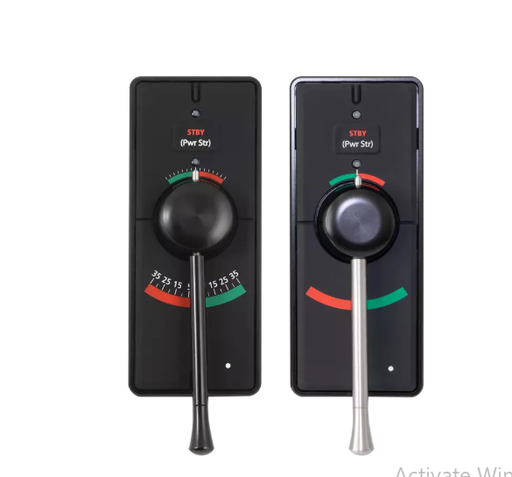

The Raymarine Autopilot Follow-On Tiller Steer Control Head (Part No: A80602) is an advanced control unit designed for Raymarine autopilot systems. This control head allows for easy switching between modes for the vessel’s steering system: Auto and Power Steer. It provides seamless control of the autopilot, ensuring a smooth transition between manual and automatic steering. The control head allows the operator to engage or disengage autopilot functions effortlessly, enhancing navigation efficiency and safety. It is ideal for both recreational and commercial vessels requiring reliable and flexible autopilot management.

Product Specifications
Type: Autopilot Follow-On Tiller Steer Control Head
Modes:
Auto (for autopilot operation)
Power Steer (manual override for steering)
Auto (for returning to autopilot mode)
Part Number: A80602
Compatibility: Designed for integration with Raymarine autopilot systems
Functionality: Provides easy mode switching between autopilot and manual steering
Usage: Ideal for improving control and flexibility in autopilot systems, enhancing navigation safety and convenience
Construction: Built with durable materials suitable for marine environments

Product Description
The Raymarine Autopilot Gateway for Yamaha Helm Master System (Part No: E70214) is a specialized device that enables seamless integration between Raymarine autopilot systems and Yamaha's Helm Master electronic steering system. This gateway allows users to control their Yamaha Helm Master system with Raymarine autopilot functionality, providing a unified control interface for easy steering and navigation. The integration improves overall vessel maneuverability, providing precise autopilot control, even in complex marine conditions. It is a vital component for boats equipped with Yamaha Helm Master systems looking to enhance their autopilot capabilities.

Product Specifications
Type: Autopilot Gateway for Yamaha Helm Master System
Part Number: E70214
Compatibility: Designed specifically for integration between Raymarine autopilot systems and Yamaha Helm Master system
Functionality: Allows control of Yamaha Helm Master system via Raymarine autopilot, enabling unified steering and navigation control
Usage: Ideal for vessels with Yamaha Helm Master systems that require enhanced autopilot integration
Construction: Marine-grade components for durability in harsh conditions

Product Description

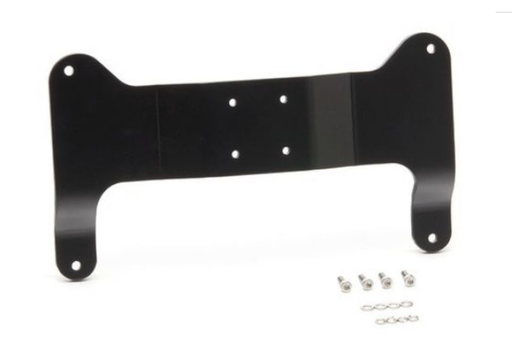

The Raymarine Axiom Pro 16 Bracket / Ball Mount Plate (Part No: A80537) is a robust and durable mounting accessory designed for use with the Raymarine Axiom Pro 16 multifunction display. This mounting plate allows for secure and adjustable installation of the Axiom Pro 16 display on a variety of surfaces. It features a ball-and-socket design that provides flexibility in adjusting the angle and positioning of the display for optimal viewing. The bracket is ideal for marine environments, ensuring a secure fit and stable performance even in rough conditions. This mounting system is perfect for those seeking easy installation and flexible positioning of their Axiom Pro 16 display.

Product Specifications
Type: Bracket / Ball Mount Plate
Part Number: A80537
Compatibility: Specifically designed for Raymarine Axiom Pro 16 Multifunction Display
Design: Ball-and-socket mount for flexible angle and positioning adjustments
Material: Marine-grade construction for durability and corrosion resistance
Usage: Ideal for mounting the Axiom Pro 16 display on various surfaces in marine environments
Functionality: Provides stable mounting and flexible positioning for optimal viewing
Weight: Lightweight but sturdy for easy handling and installation

Product Description

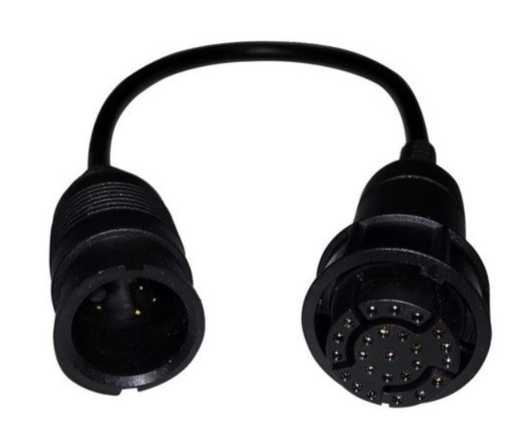

The Raymarine Axiom RV to CP370 Transducer Cable (Part No: A80489) is a high-quality, marine-grade cable designed to connect the Raymarine Axiom RV multifunction display to a CP370 sonar module. This cable is essential for providing the necessary communication and power between the Axiom RV display and the CP370, enabling the integration of advanced sonar capabilities such as RealVision 3D, DownVision, and CHIRP sonar for enhanced fishfinding and depth-sounding. This cable ensures reliable, stable, and high-performance signal transmission, ensuring that you can access detailed sonar data in real-time for better navigation and fishing experiences.

Product Specifications
Type: Axiom RV to CP370 Transducer Cable
Part Number: A80489
Compatibility: Connects Raymarine Axiom RV display to CP370 sonar module
Functionality: Enables integration of sonar data between Axiom RV and CP370, allowing advanced sonar features
Material: Marine-grade cable, designed to withstand harsh marine environments
Length: Sufficient to connect display and sonar module in typical installation setups
Usage: Ideal for enhancing sonar capabilities with Axiom RV displays and CP370 sonar modules

Product Description
The Raymarine Axiom XL 16 - 15.6” Multifunction Display Kit (Part No: T70427) is a comprehensive navigation and display solution for marine enthusiasts and professionals. This kit includes a 15.6-inch Axiom XL display, offering a large and high-resolution screen for easy viewing of charts, sonar data, and other navigational information. The kit also includes the RCR-SD, an Alarm, and necessary Cables, providing everything needed for installation and setup. The Axiom XL series features advanced touchscreen control with LightHouse operating software, making navigation and system management straightforward and efficient. This kit is ideal for larger vessels requiring a powerful, integrated system for both navigation and real-time data display.

Product Specifications
Type: Axiom XL 16 - 15.6” Multifunction Display Kit
Part Number: T70427
Display Size: 15.6 inches
Display Type: High-resolution multifunction touchscreen display
Included Accessories:
RCR-SD (Radar/Sonar Controller and Display)
Alarm
Cables
Compatibility: Suitable for integration with Raymarine's other systems such as radar, sonar, autopilot, and navigation modules
Software: Runs on Raymarine's LightHouse operating system, offering intuitive interface and advanced navigation features
Usage: Designed for larger vessels, offering easy control over complex systems with a large display
Construction: Built to withstand harsh marine environments, ensuring durability and reliability
Functionality: Allows the integration of various Raymarine systems, including sonar, radar, and autopilot, for comprehensive marine navigation

Product Description
The Raymarine Axiom XL 19 - 18.5” Multifunction Display Kit (Part No: T70428) is a high-performance navigation solution designed for serious mariners and professionals. This kit includes an 18.5-inch Axiom XL display, offering a large, high-resolution screen that allows users to view charts, sonar data, and other navigational information with ease. The display is designed to operate seamlessly in bright sunlight, providing excellent visibility under all lighting conditions. The kit also includes the RCR-SD (Radar/Sonar Controller and Display), Alarm, and necessary Cables, offering all essential components for easy installation and setup. The Axiom XL series features Raymarine's LightHouse OS, providing an intuitive interface, fast processing speeds, and advanced navigation features such as RealVision 3D, CHIRP sonar, and more. Ideal for larger vessels, this multifunction display offers excellent control and integration with various marine systems.

Product Specifications
Type: Axiom XL 19 - 18.5” Multifunction Display Kit
Part Number: T70428
Display Size: 18.5 inches
Display Type: High-resolution, sunlight-readable multifunction touchscreen
Included Accessories:
RCR-SD (Radar/Sonar Controller and Display)
Alarm
Cables
Operating System: Raymarine LightHouse OS, providing fast processing and intuitive controls
Compatibility: Works with Raymarine radar, sonar, autopilot, and other navigation systems
Usage: Ideal for larger vessels requiring a powerful, integrated navigation system
Construction: Designed to withstand harsh marine environments for durability and reliability
Software Features: Supports RealVision 3D, CHIRP sonar, and other advanced navigation capabilities
Functionality: Provides seamless integration for radar, sonar, autopilot, and other marine systems

Product Description

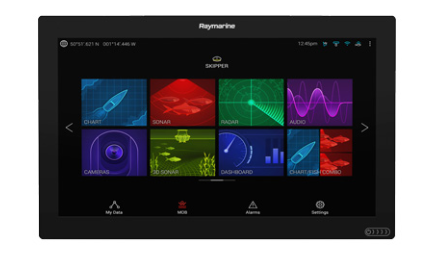

The Raymarine Axiom XL 19 - 18.5” Multifunction Display Only (Part No: E70400) is a high-performance, large-format display designed for marine navigation and control. This standalone 18.5-inch display provides excellent resolution, making it easy to view detailed charts, sonar data, and other vital navigational information. Ideal for larger vessels, the Axiom XL 19 is built to deliver exceptional visibility in bright sunlight, ensuring users have full control of their navigation systems under all lighting conditions. The display utilizes Raymarine’s LightHouse OS, which provides an intuitive interface, fast processing, and seamless integration with various marine devices such as radar, sonar, and autopilot systems. As a part of the Axiom XL series, it supports RealVision 3D sonar, CHIRP sonar, and advanced navigation features, making it an ideal choice for professionals who demand high performance and reliability from their marine electronics.

Product Specifications
Type: Axiom XL 19 - 18.5” Multifunction Display Only
Part Number: E70400
Display Size: 18.5 inches
Display Type: High-resolution, sunlight-readable multifunction touchscreen
Operating System: Raymarine LightHouse OS
Compatibility: Works with Raymarine radar, sonar, autopilot, and other navigation systems
Functionality: Supports RealVision 3D, CHIRP sonar, and other advanced navigation capabilities
Usage: Ideal for larger vessels requiring powerful, integrated navigation solutions
Design: Robust, built to withstand harsh marine environments
Installation: Display-only version, can be paired with various external components for full functionality
Software Features: Fast processing, intuitive interface, seamless integration with marine systems

Product Description

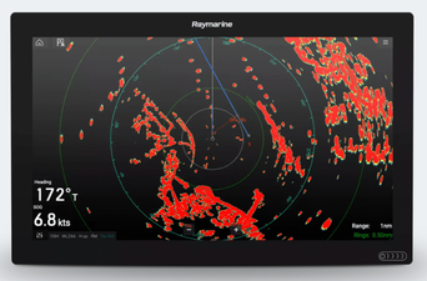

The Raymarine Axiom XL 22 - 21.5” Multifunction Display Kit (Part No: T70429) is a premium, large-format display kit that combines a high-resolution 21.5-inch touchscreen with advanced marine navigation features. This kit includes an RCR-SD, alarm, and necessary cables, providing everything needed for seamless integration into your boat's navigation system. The Axiom XL 22 is designed for larger vessels that require superior visibility and performance for navigation, sonar, radar, and other marine systems. Its LightHouse OS interface ensures a smooth, intuitive user experience, while its integration with Raymarine’s RealVision 3D, CHIRP sonar, and other marine devices makes it an all-in-one solution for modern maritime operations. With an easy-to-read display in direct sunlight and a rugged design, this display kit is ideal for demanding marine environments.

Product Specifications
Type: Axiom XL 22 - 21.5” Multifunction Display Kit
Part Number: T70429
Display Size: 21.5 inches
Display Type: High-resolution, sunlight-readable touchscreen
Operating System: Raymarine LightHouse OS
Included Components:
RCR-SD (Radar Control and Smart Display)
Alarm system
Required cables for installation
Compatibility: Works seamlessly with Raymarine radar, sonar, autopilot, and navigation systems
Functionality: Supports RealVision 3D, CHIRP sonar, radar, and other advanced navigation capabilities
Usage: Ideal for larger vessels requiring powerful, integrated marine navigation solutions
Design: Rugged, built to withstand harsh marine environments
Installation: Complete kit, ready to install with all necessary components
Software Features: Fast processing, intuitive interface, seamless integration with marine systems

Product Description

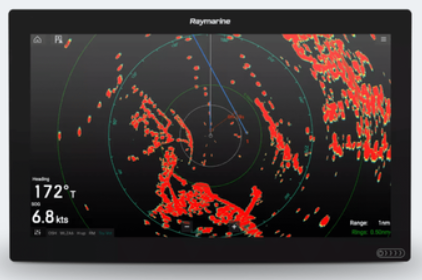

The Raymarine Axiom XL 22 - 21.5” Multifunction Display Only (Part No: E70515) is a standalone, high-performance 21.5-inch touchscreen display designed for marine environments. Built with a rugged, sunlight-readable screen, the Axiom XL 22 provides exceptional clarity and reliability in demanding maritime conditions. It features Raymarine's LightHouse OS, offering an intuitive user interface that allows for quick access to navigation, sonar, radar, and other marine functionalities. This display supports advanced technologies such as RealVision 3D, CHIRP sonar, and radar integration. The Axiom XL 22 is ideal for larger vessels needing a powerful and integrated display solution for various marine applications, without the included accessories found in a full kit. It is perfect for users who already have the necessary transducers and accessories but require a reliable, high-quality screen for navigation and control.

Product Specifications
Type: Axiom XL 22 - 21.5” Multifunction Display Only
Part Number: E70515
Display Size: 21.5 inches
Display Type: High-resolution, sunlight-readable touchscreen
Operating System: Raymarine LightHouse OS
Functionality: Supports RealVision 3D, CHIRP sonar, radar, and other marine applications
Design: Rugged, durable construction for marine environments
Compatibility: Compatible with various Raymarine sensors, radar, sonar, and autopilot systems
Installation: Display unit only, without additional accessories (such as transducers or alarms)
Software Features: Intuitive interface, fast processing, and seamless integration with marine systems
Usage: Ideal for large vessels requiring a high-quality display solution for navigation, sonar, and radar systems

Product Description

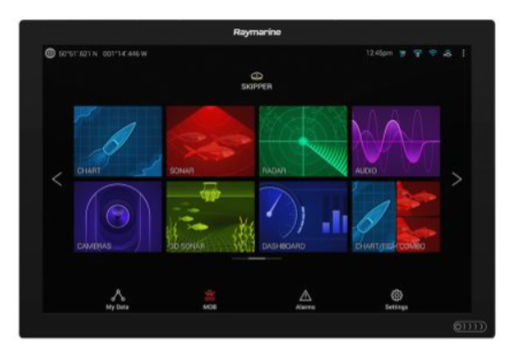

The Raymarine Axiom XL 24 - 24” Multifunction Display Kit (Part No: T70430) is an all-in-one, high-performance 24-inch touchscreen display designed for larger vessels requiring powerful navigation, sonar, radar, and other marine functionalities. The Axiom XL 24 offers a large, easy-to-read screen with advanced Raymarine RealVision 3D sonar, CHIRP technology, and seamless integration with a wide range of Raymarine marine systems. This display kit includes everything needed for installation, including RCR-SD, alarm, and cables. The LightHouse OS interface ensures intuitive control and fast access to navigation, weather, sonar, and radar functionalities. Ideal for professionals or serious recreational boaters, the Axiom XL 24 is built for durability, with a robust, marine-grade design that performs in challenging environmental conditions.

Product Specifications
Type: Axiom XL 24 - 24” Multifunction Display Kit
Part Number: T70430
Display Size: 24 inches
Display Type: High-resolution, sunlight-readable touchscreen
Operating System: Raymarine LightHouse OS
Included Accessories:
RCR-SD
Alarm
Cables
Functionality: Supports RealVision 3D, CHIRP sonar, radar, and other marine applications
Design: Rugged, durable construction for marine environments
Compatibility: Compatible with various Raymarine sensors, radar, sonar, and autopilot systems
Installation: Complete kit including necessary cables and accessories
Software Features: Fast processing, intuitive interface, and seamless integration with marine systems
Usage: Ideal for large vessels requiring an all-in-one navigation and control solution for various marine applications

Product Description
The Raymarine Axiom XL 24 - 24” Multifunction Display Only (Part No: E70401) is a high-performance marine display designed for large vessels requiring advanced navigation, sonar, radar, and other maritime functionalities. With its 24-inch high-resolution touchscreen, the Axiom XL 24 offers a large, clear, and bright screen, even under direct sunlight. It runs on Raymarine's LightHouse OS, providing an intuitive and fast user interface. This standalone display is perfect for those who already have compatible transducers, sensors, and radar systems, as it does not include any additional accessories. It supports advanced RealVision 3D sonar, CHIRP, and radar integration, delivering a seamless experience for professional and serious recreational boaters.

Product Specifications
Type: Axiom XL 24 - 24” Multifunction Display Only
Part Number: E70401
Display Size: 24 inches
Display Type: High-resolution, sunlight-readable touchscreen
Operating System: Raymarine LightHouse OS
Functionality: Supports RealVision 3D sonar, CHIRP sonar, radar, and other marine applications
Design: Rugged, durable construction for marine environments
Compatibility: Compatible with Raymarine sensors, radar, sonar, and autopilot systems
Installation: Display unit only (no additional accessories)
Software Features: Fast processing, intuitive interface, and seamless integration with marine systems
Usage: Ideal for large vessels requiring a standalone display for navigation and control

Product Description

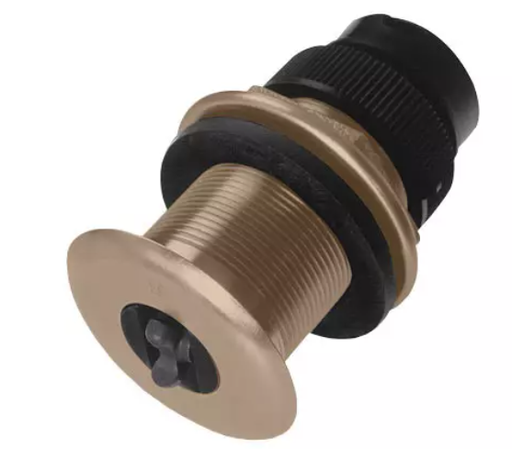

The Raymarine B120 Speed/Temperature Low Profile Retractable Through Hull Transducer (Part No: M78716) is designed for accurate speed and temperature readings in marine environments. This retractable, low-profile through-hull transducer is ideal for vessels where minimizing drag and preserving hull aesthetics is important. When not in use, the transducer can be retracted, reducing resistance and ensuring the vessel's performance is not compromised. The B120 provides reliable data for speed, water temperature, and other key metrics essential for navigation and monitoring. It’s compatible with Raymarine fishfinders and multifunction displays.

Product Specifications
Type: Speed/Temperature Low Profile Retractable Through-Hull Transducer
Part Number: M78716
Functionality: Measures speed through water and water temperature
Design: Low-profile, retractable through-hull installation
Material: High-quality, corrosion-resistant materials for marine environments
Installation: Easy to install on the hull with a retractable feature
Compatibility: Compatible with Raymarine fishfinders and multifunction displays
Retractability: Can be retracted when not in use to minimize drag
Hull Impact: Minimizes drag and ensures vessel performance
Usage: Ideal for recreational and commercial vessels requiring accurate speed and temperature readings
Additional Features: Reduces drag when retracted, enhances vessel speed and fuel efficiency

Product Description
The Raymarine B17 D Through Hull Retractable Transducer (Part No: M78717) is a high-performance, through-hull retractable transducer designed for reliable sonar performance in marine environments. This transducer allows users to measure depth with precision, and its retractable design reduces drag when not in use. It is ideal for boats where minimizing underwater resistance is important. The B17 D offers both convenience and superior performance, ensuring your sonar system provides clear and accurate depth readings. It is compatible with Raymarine’s advanced fishfinders and multifunction displays.

Product Specifications
Type: Through-Hull Retractable Sonar Transducer
Part Number: M78717
Functionality: Depth measurement with high sonar performance
Design: Retractable through-hull installation with a low-profile design
Material: Durable, corrosion-resistant material suitable for marine use
Retractability: Reduces drag when retracted, ideal for high-speed boating
Compatibility: Works with Raymarine fishfinders and multifunction displays
Hull Impact: Retractable design minimizes hull drag and resistance
Ease of Use: Easy to install with a convenient retractable mechanism
Additional Features: Offers clear and accurate depth readings, reduces underwater resistance when retracted

Product Description
The Raymarine B175H Bronze Low Profile 1000W D/T Through Hull Transducer 0° Angle (Part No: A80044) is a high-performance transducer designed to provide exceptional sonar imaging for anglers and marine enthusiasts. This through-hull transducer offers a low-profile bronze construction, making it ideal for use on vessels where minimizing drag and preserving the vessel's aesthetic is important. With its 0° deadrise angle, the B175H ensures optimal sonar performance, providing clear and precise depth and temperature readings. Its 1000W power output enhances the depth of sonar signals, offering a broader range for deep-water fishing.

Product Specifications
Type: Through-Hull Transducer
Part Number: A80044
Power Output: 1000W
Frequency Range: 50/200 kHz
Angle: 0° deadrise (ideal for planing hulls)
Material: Bronze (low profile)
Functionality: Depth and temperature measurement with high sonar performance
Hull Impact: Low-profile design reduces drag and maintains vessel performance
Compatibility: Works with Raymarine sonar systems, fishfinders, and multifunction displays
Installation: Through-hull installation with easy mounting for deep-water performance
Additional Features: Provides high-resolution sonar data, ideal for deep-water fishing
Recommended Use: Ideal for boats with a deadrise angle of 0°, planing hull vessels, deep-water fishing
