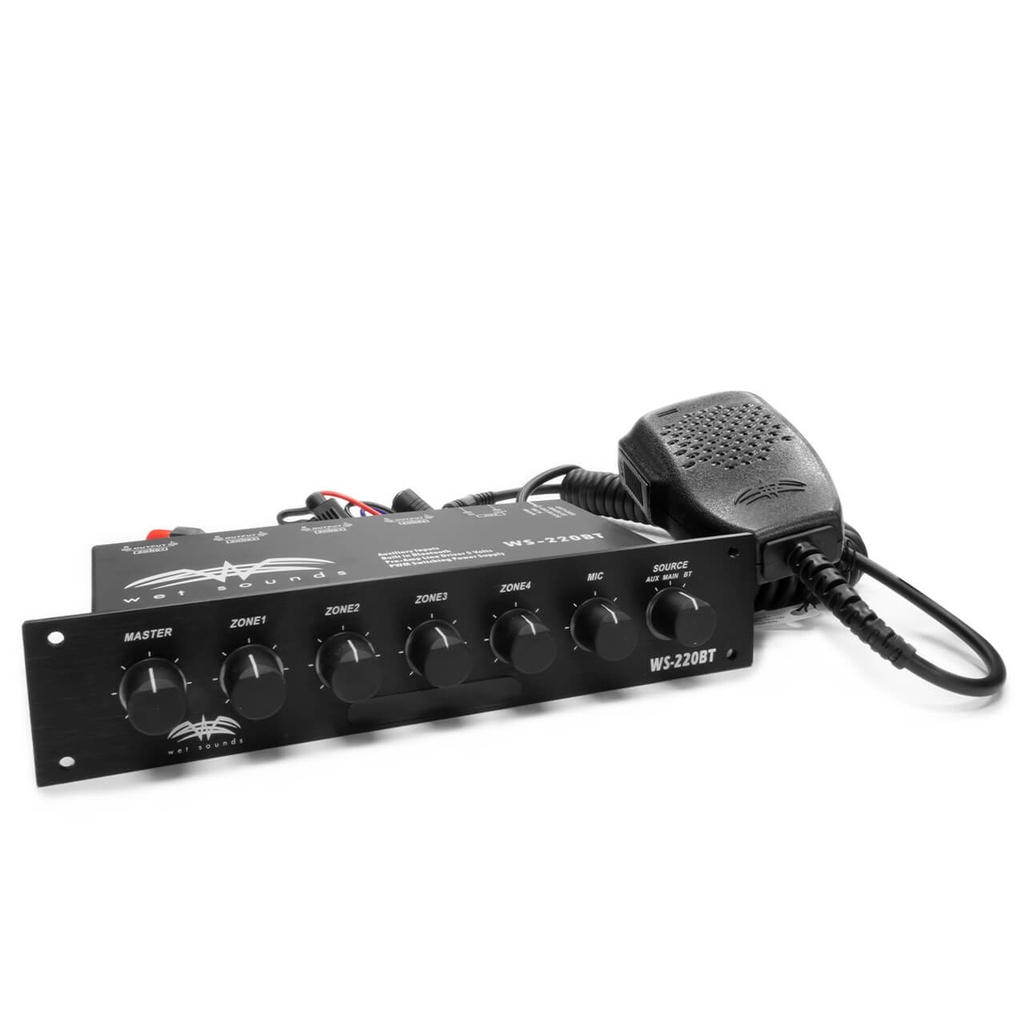

Wet Sounds Bluetooth Enabled 4 Zone Control and built in Mic, model #: WS-220 BT*

The WS-220 BT is a 4-zone audio level controller with built-in Bluetooth®, designed for seamless integration into any audio system. Utilizing CSR BT 4.0 with AptX codec, it ensures high-fidelity sound quality. It also features Main and Auxiliary inputs, allowing for a true 3-source selection, all housed in a half-DIN chassis.

With its exclusive design, the WS-220 BT allows independent control of 4 separate zones, which can be assigned to different audio components. For example:
🔹 Zone 1: Tower Speakers
🔹 Zone 2: Front Cabin Speakers
🔹 Zone 3: Rear Cabin Speakers
🔹 Zone 4: Subwoofer(s)

Each zone's level can be adjusted independently, while the Master Level Control provides overall volume control across all zones.

Advanced Features:
✅ Independent Zone Control – Manage volume levels for 4 separate audio zones
✅ Built-In Bluetooth® (CSR BT 4.0 + AptX Codec) – Ensures high-quality wireless audio
✅ Talk-Back Microphone with Independent Level Control – Functions like a PA system, muting Zone 1 when activated
✅ Master Level Control – Adjusts all zones simultaneously, except the mic level
✅ Multiple Input Options – Switch between Main (head unit), Auxiliary (wired device), or Bluetooth® streaming
✅ 3.5mm Auxiliary Input & Boat Link Output – Connect MP3 players or link multiple WS-220 BT units using the Wet Sounds A-Link Kit (sold separately)
✅ Adjustable Input Sensitivity – Fine-tune Main, Auxiliary, and Bluetooth® inputs for optimal performance
✅ Selectable Illumination – Choose between blue or red LED lighting
✅ Ground Isolation Jumper – Helps eliminate alternator noise when needed

Specifications:
Signal-to-Noise Ratio: 80dB @ 1V Input
Frequency Response: 10 Hz – 40 kHz
Operational Voltage: 11-15V DC, Negative Ground
Input Impedance: 20K Ohms
Chassis Dimensions: 4.615" L x 6.9" W x 1.050" H
Max Output Voltage: 5V RMS
Total Harmonic Distortion (T.H.D.): 0.05%
Faceplate Dimensions: 0.100" L x 8.062" W x 1.650" H
Built-In Bluetooth®: Yes
Zone Control: Yes

Barcode: 34.12.38
Producer: Wet Sounds
Origin: Mexico
Delivery Time: 8 - 12 weeks
Guarantee: 1 year
